  The Onyx - 4 Bedroom, 4 1/2 Bathroom

  Interior Living Space              2,911 Sq. Ft. (270,72 M2)

  Covered Porches                       742 Sq. Ft. (69,00 M2)

  2 Car Garage                            496 Sq. Ft. (46,12 M2)

  Total                                        4,149 Sq. Ft. (385,85 M2)

  First Floor (Footprint)             2,895 Sq. Ft. (269,23 M2)

  Second Floor                        1,254 Sq. Ft. (116,62 M2)

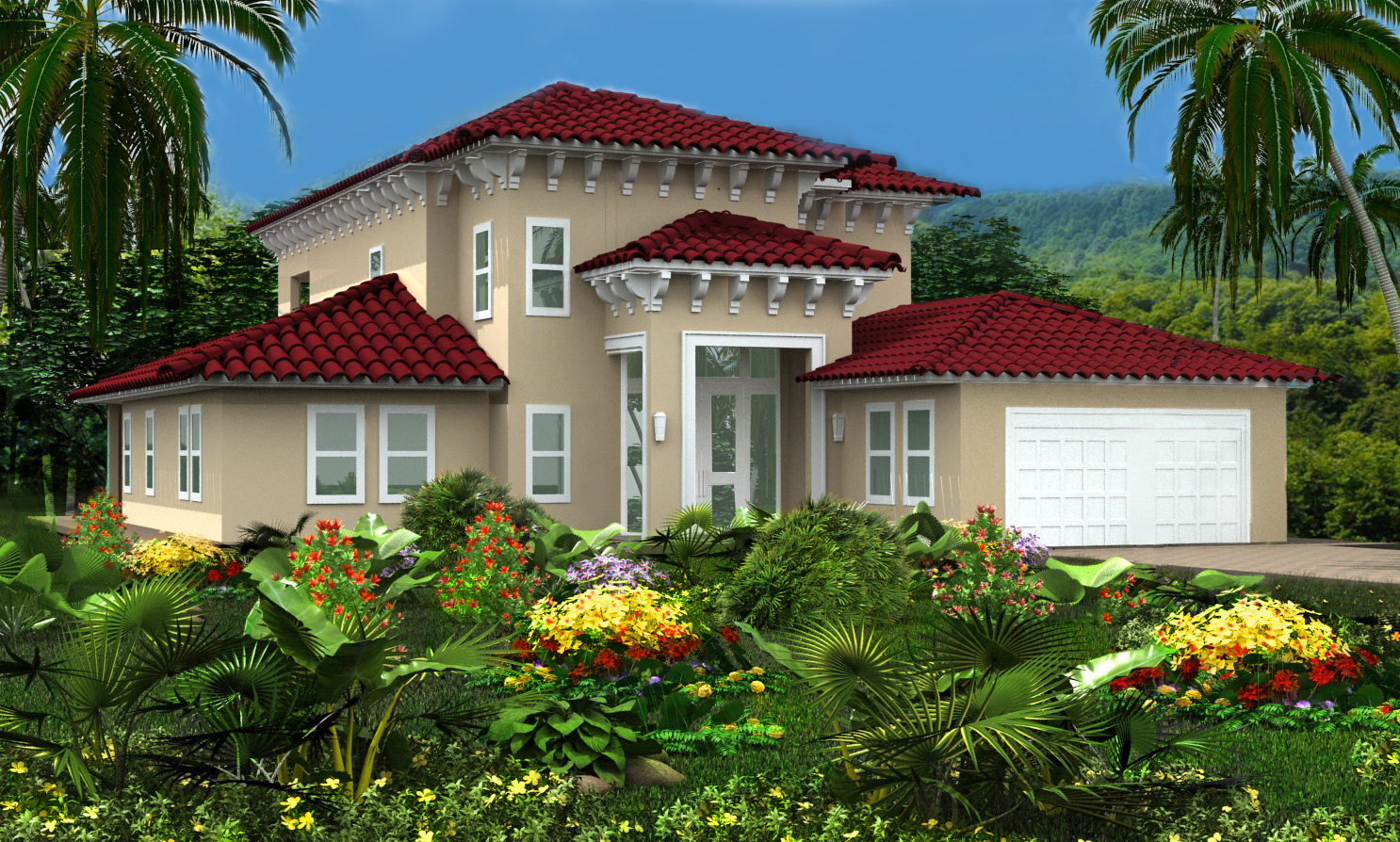

   Front Elevation Click on picture below to enlarge

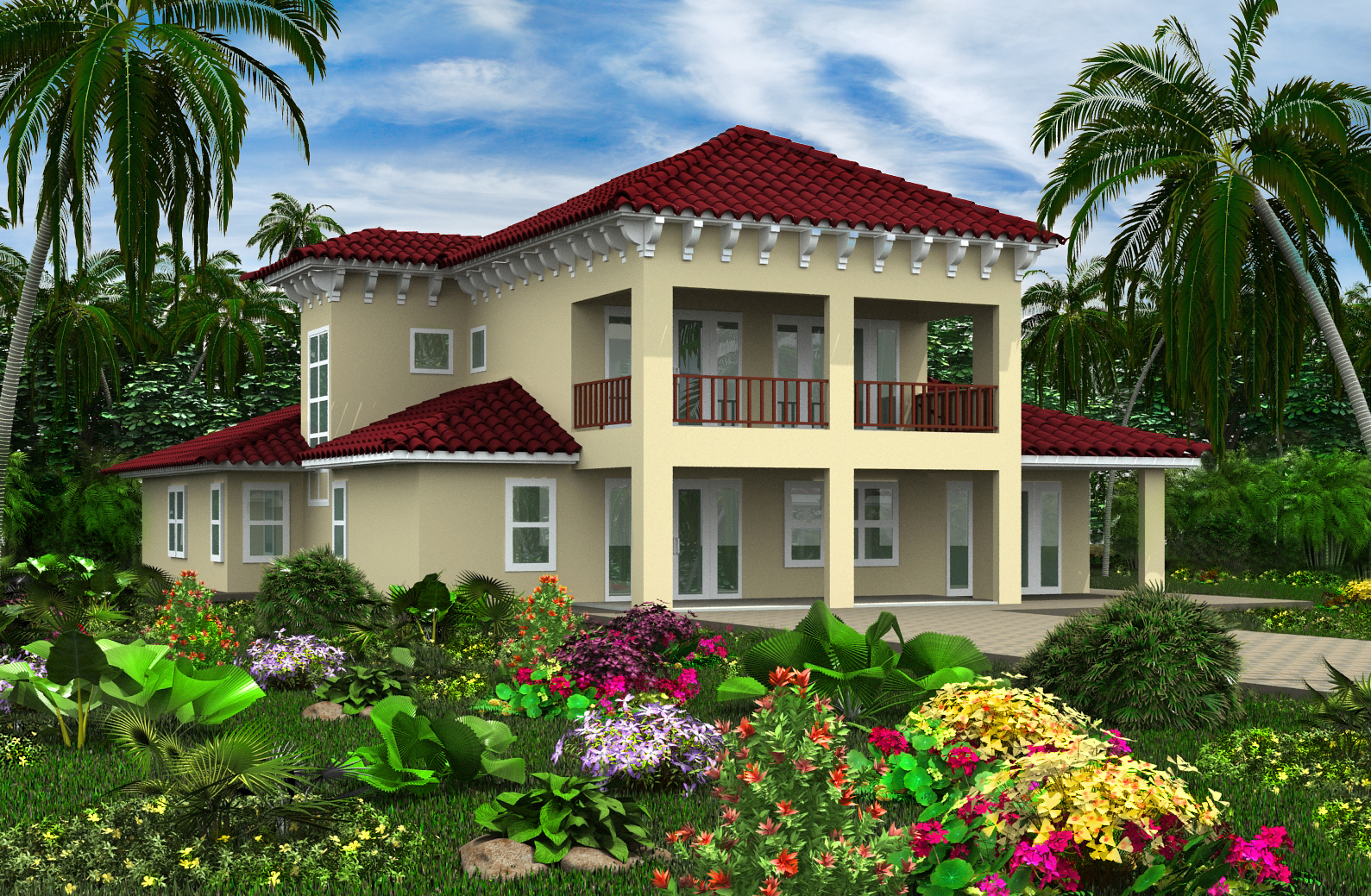

   Rear Elevation Click on picture below to enlarge

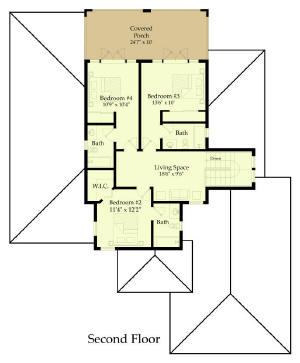

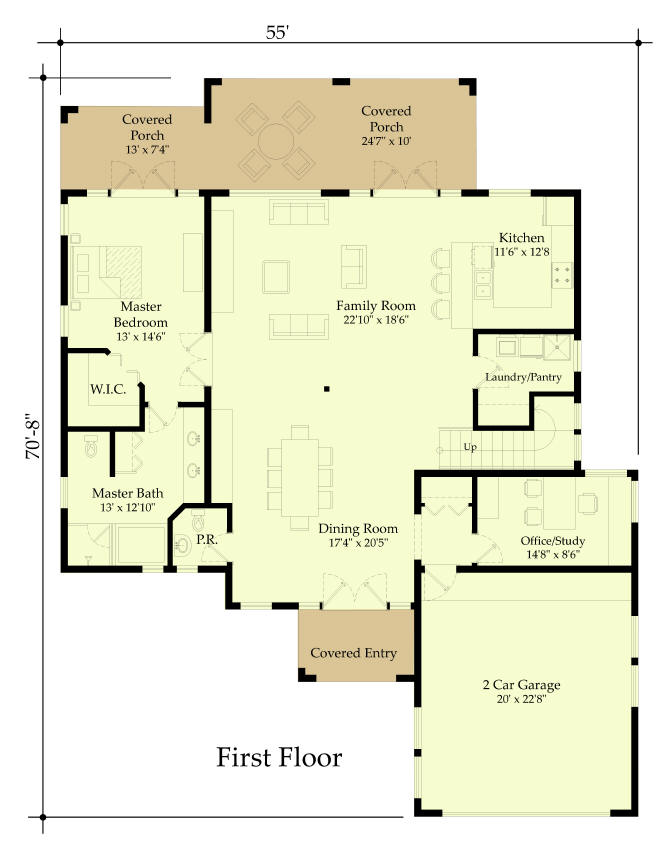

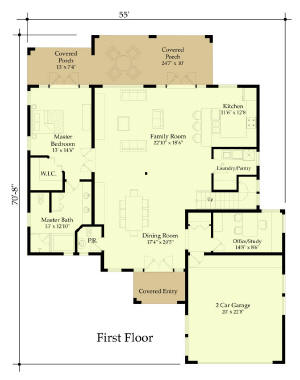

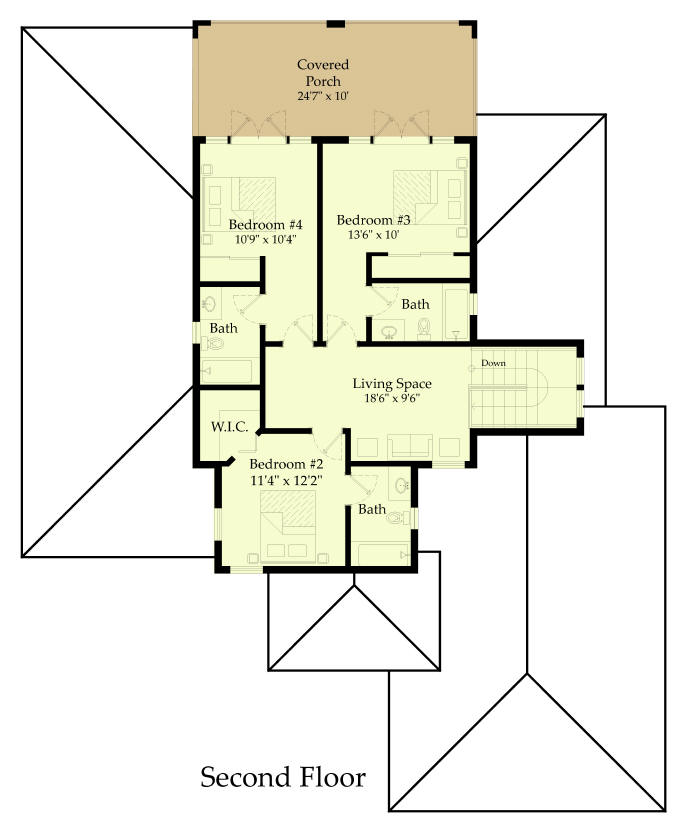

    Floor Plans

    click on thumbnail below to enlarge
